Binzel 14AK mig torch binzel welding torch mig welding gun and parts
Our company produces :
1 . MIG/MAG,CO2 : Binzel 14AK , 15AK ,24KD , 36KD , 501D , Panasonic 180A , 200A , 350A , 500A , Bernard 200E , Bernard 300E Bernard 400E , Bernard 600E ,Tweco 2# , Tweco 3# , Tweco 4# , Tweco 5# , Fronius AW4000 , AW5000 , AL3000 , AL4000 , Saf welding torch , Miller , and tregaskiss and gas nozzle,contact tip , contact tip holder , swan neck , gas diffuser liner etc .
2 . Tig : WP12 , WP9 , WP17 , WP18 , WP26 welding torches and torch head (F / FV / V / P) , collet , collet body , gas lens , ceramic nozzle , aluminal nozzle , long / mediu / short cap etc.
3 . Air plasma cutting : P80 , P160 , PT31 , AG60 , SG55 , JG60 , JG100 ,Trafimet serise , Hypertherm , and Thermal dynamics cutting torches , torch head , nozzle , electrodes , tips , ceramic shield cap , white wheel , swirl ring etc .
4 . cable joint , earth clamp
5 . welding helmet , electorde holder
6 . tungsten electrode
| 1 . Binzel 14AK mig torch binzel welding torch mig welding gun and parts view: |

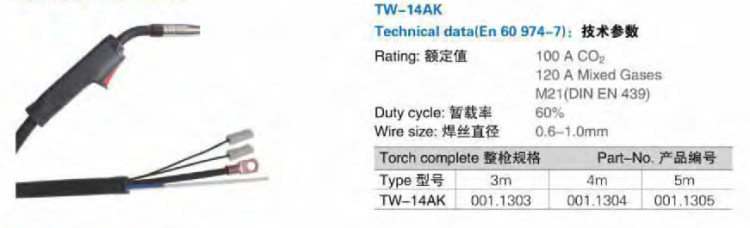

| 2. Binzel 14AK mig torch binzel welding torch mig welding gun and parts technology data: |
| Model | MB-14AK mig torch -3Meters | MB-14 AK mig torch -4Meters | MB-14AK mig torch -5Meters |
| Item No. | 0041.1303 | 001.1304 | 001.1305 |
| Welding Type | MIG/MAG CO2 torch |
| Rating | 100A CO2 120A Mixed Gases |
| Duty Cycle | 60% |
| Wire Size | 0.6-1.0mm |
| Cooled Type | Air Cooled |
| Connector Choosend | Euro,TBI,Panasonic,Miller,OTC,Bernard,Tweco etc. |
| Handle Choosen | Binzel(old type),Binzel(grip type),TBI |
| Net Weight | 2.5KG | 3KG | 3.5KG |
| Gross Weight | 2.8KG | 3.3KG | 3.8KG |
| Packing Size | 34*34*6CM |
| 3. Binzel 14AK mig torch binzel welding torch mig welding gun family torch Item No: |
| Description | Standard No. |
| 14AKcomplete torch-3M | 001.1303 |
| 14AKcomplete torch-4M | 001.1304 |
| 14AKcomplete torch-5M | 001.1305 |
| 15AKcomplete torch-3M | 002.0449 |
| 15AKcomplete torch-4M | 002.0450 |
| 15AKcomplete torch-5M | 002.0451 |
| 25AKcomplete torch-3M | 004.0312 |
| 25AKcomplete torch-4M | 004.0313 |
| 25AKcomplete torch-5M | 004.0314 |
| 24KDcomplete torch-3M | 012.0103 |
| 24KDcomplete torch-4M | 012.0104 |
| 24KDcomplete torch-5M | 012.0105 |
| 36KDcomplete torch-3M | 014.0143 |
| 36KDcomplete torch-4M | 014.0144 |
| 36KDcomplete torch-5M | 014.0145 |
| 40KDcomplete torch-3M | 015.0029 |
| 40KDcomplete torch-4M | 015.0032 |
| 40KDcomplete torch-5M | 015.0034 |
| 501Dcomplete torch-3M | 034.0160 |
| 501Dcomplete torch-4M | 034.0161 |
| 501Dcomplete torch-5M | 034.0162 |
| 4. Binzel 14AK mig torch binzel welding torch mig welding gun and parts packing |
.1piece Binzel 14AK mig torch binzel welding torch mig welding gun and parts packed in a box
. then 5pcs packed in a box(box size 34*34*7CM)
Product Tags:
|
|
0.8-1.2mm Wire Diameter Binzel Welding Torch Air Cooled Type CCC Certificated Images
|
